| Product Group | 1-Phase Ventilated Isolation |
|---|---|
| Catalog Number | PTN104-100K-TENV |
| Phase | 1-Phase |
| Capacity | 100.0 |
| Frequency | 60 |
| Primary Voltage | 240 x 480 |
| Primary Taps | 2, -4 @ 2.5% |
| Secondary Voltage | 120 x 240 |
| Conductor | Aluminum |
| Shielded | No |
| Temperature Rise | 150 |
| Insulation Class | 220 |
| Construction | Isolation |
| Design | Totally Enclosed Non-Ventilated |
| Certification | cUL Listed |

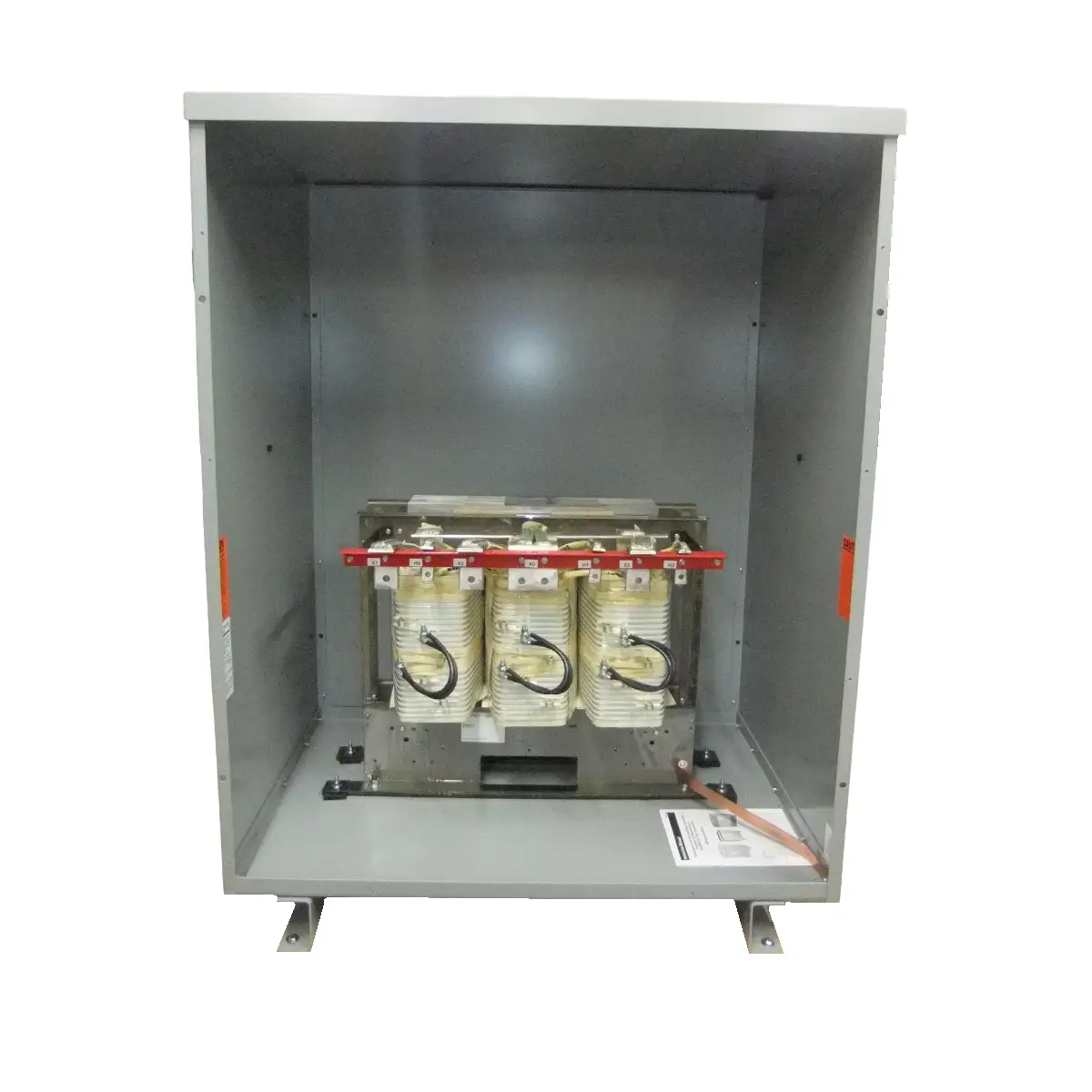

PTN104-100K-TENV
1-Phase Ventilated Isolation
SKU: PTN104-100K-TENV
1-Phase, 100 KVA
Isolation Transformer
240 x 480 Primary Voltage
120 x 240 Secondary Voltage
NEMA-3R ( OUTDOOR )
cUL Listed
Lead Time - 10 Weeks
Add to quote
| Height | 72.75 |
|---|---|
| Width | 53.38 |
| Depth | 36.88 |
| Weight | 1525 |
| Mounting | Floor |
| Termination | Terminal Pad |
| Lug Kit | LUG-SP ( 100 KVA ) |
|---|---|
| Weather Shield | N/A |
| Wall Bracket | N/A |
